Name: STG3682QTR
Brand: STMicroelectronics
SKU: STG3682QTR
Price: 1.00 USD
Availability: InStock

REF: STG3682QTR STMicroelectronics

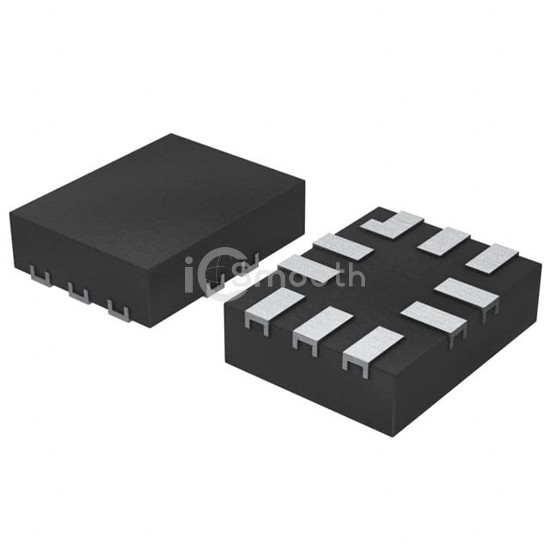

STG3682QTR

IC SWITCH DUAL SPDT 10QFN

STG3682QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,000

Tiered Pricing USD

1+ $1.0000 —

10+ $0.7180 -28%

25+ $0.6476 -35%

100+ $0.5706 -43%

250+ $0.5338 -47%

500+ $0.5117 -49%

1,000+ $0.4934 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	5.2Ohm
Channel-to-Channel Matching (ΔRon)	300mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	15ns, 13ns

-3db Bandwidth	800MHz
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-78dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
