Name: STG3680QTR
Brand: STMicroelectronics
SKU: STG3680QTR
Price: 0.49 USD
Availability: InStock

REF: STG3680QTR STMicroelectronics

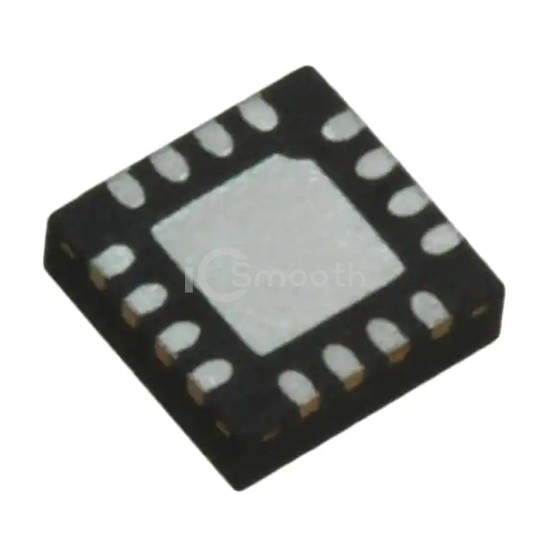

STG3680QTR

IC SWITCH DUAL 2X1 16QFN

STG3680QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL 2X1 16QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,826

Tiered Pricing USD

3,000+ $0.4915 —

6,000+ $0.4801 -2%

9,000+ $0.4744 -3%

15,000+ $0.4680 -5%

21,000+ $0.4643 -6% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	800mOhm
Channel-to-Channel Matching (ΔRon)	60mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 30ns

-3db Bandwidth	50MHz
Charge Injection	35pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-54dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-QFN (3x3)
