Name: STG3155DTR
Brand: STMicroelectronics
SKU: STG3155DTR
Price: 0.35 USD
Availability: InStock

REF: STG3155DTR STMicroelectronics

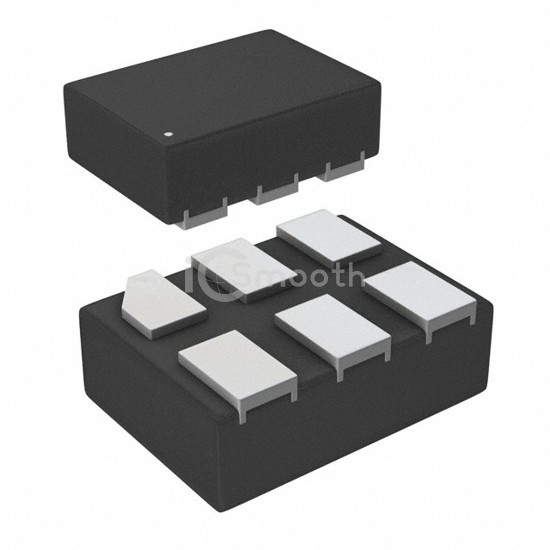

STG3155DTR

IC SWITCH SPDT 6DFN

STG3155DTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SPDT 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 6-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 10,522

Tiered Pricing USD

5,000+ $0.3477 —

10,000+ $0.3401 -2%

15,000+ $0.3364 -3%

25,000+ $0.3322 -4% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	600mOhm
Channel-to-Channel Matching (ΔRon)	21mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	55ns, 30ns

-3db Bandwidth	70MHz
Charge Injection	53pC
Channel Capacitance (CS(off), CD(off))	6.6pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-72dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-DFN (1.45x1)
