Name: STFW12N120K5
Brand: STMicroelectronics
SKU: STFW12N120K5
Price: 13.50 USD
Availability: InStock

REF: STFW12N120K5 STMicroelectronics

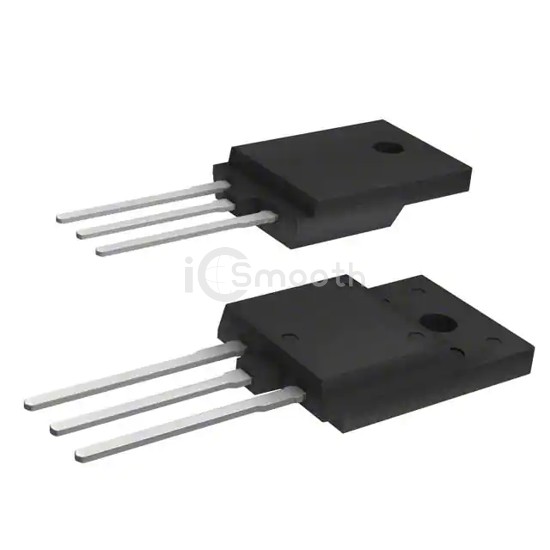

STFW12N120K5

STMicroelectronics

MOSFET N-CH 1200V 12A ISOWATT

STFW12N120K5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 1200V 12A ISOWATT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3 Full Pack.

Datasheet Request a Quote

In Stock: 4,179

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	690mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	44.2 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1370 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	63W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PF
Package / Case	TO-3P-3 Full Pack
