Name: STFILED625
Brand: STMicroelectronics
SKU: STFILED625
Availability: InStock

REF: STFILED625 STMicroelectronics

STFILED625

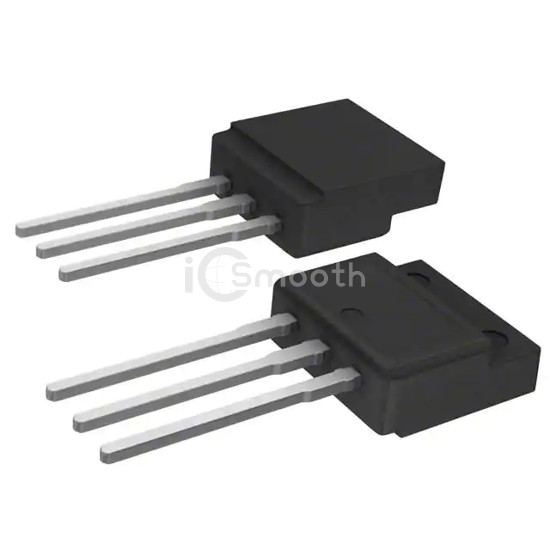

MOSFET N-CH 620V 4.5A I2PAKFP

STFILED625 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 620V 4.5A I2PAKFP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Full Pack, I²Pak.

Datasheet Request a Quote

In Stock: 2,880

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	620 V
Current - Continuous Drain (Id) @ 25°C	4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 1.9A, 10V
Vgs(th) (Max) @ Id	4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	560 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAKFP (TO-281)
Package / Case	TO-262-3 Full Pack, I²Pak
