Name: STFI8N80K5
Brand: STMicroelectronics
SKU: STFI8N80K5
Price: 2.47 USD
Availability: InStock

REF: STFI8N80K5 STMicroelectronics

STFI8N80K5

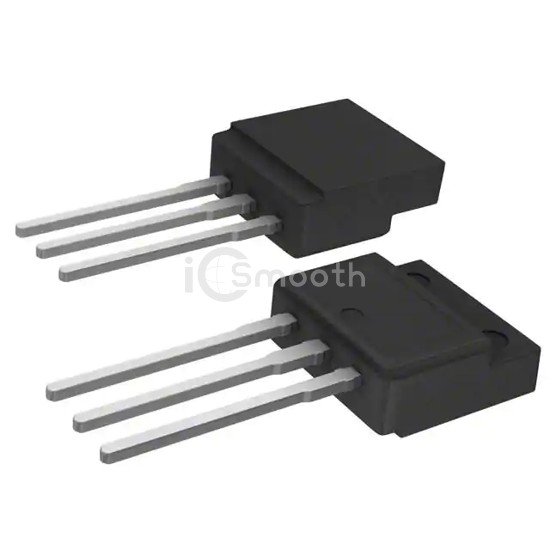

MOSFET N-CH 800V 6A I2PAKFP

STFI8N80K5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 800V 6A I2PAKFP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Full Pack, I²Pak.

Datasheet Request a Quote

In Stock: 1,490

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	950mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	16.5 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	450 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAKFP (TO-281)
Package / Case	TO-262-3 Full Pack, I²Pak
