Name: STFI5N95K3
Brand: STMicroelectronics
SKU: STFI5N95K3
Price: 2.39 USD
Availability: InStock

REF: STFI5N95K3 STMicroelectronics

STFI5N95K3

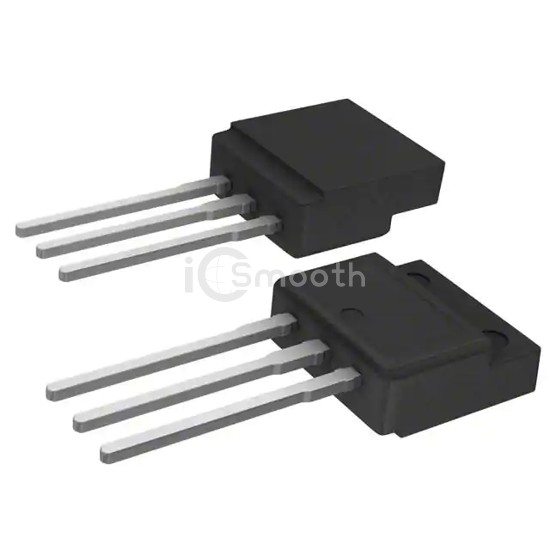

MOSFET N-CH 950V 4A I2PAKFP

STFI5N95K3 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 950V 4A I2PAKFP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Full Pack, I²Pak.

Datasheet Request a Quote

In Stock: 695

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	950 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.5Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	460 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAKFP (TO-281)
Package / Case	TO-262-3 Full Pack, I²Pak
