Name: STFI34N65M5
Brand: STMicroelectronics
SKU: STFI34N65M5
Price: 5.49 USD
Availability: InStock

REF: STFI34N65M5 STMicroelectronics

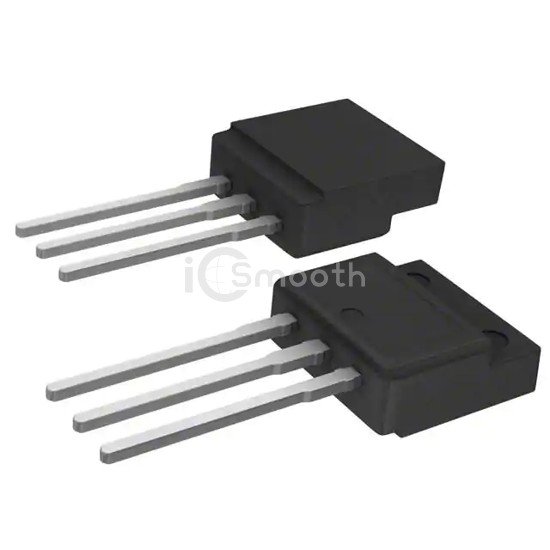

STFI34N65M5

MOSFET N CH 650V 28A I2PAKFP

STFI34N65M5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N CH 650V 28A I2PAKFP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-262-3 Full Pack, I²Pak.

Datasheet Request a Quote

In Stock: 1,492

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	28A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	110mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	62.5 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	2700 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	35W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAKFP (TO-281)
Package / Case	TO-262-3 Full Pack, I²Pak
