Name: STFI11N65M2
Brand: STMicroelectronics
SKU: STFI11N65M2
Availability: InStock

REF: STFI11N65M2 STMicroelectronics

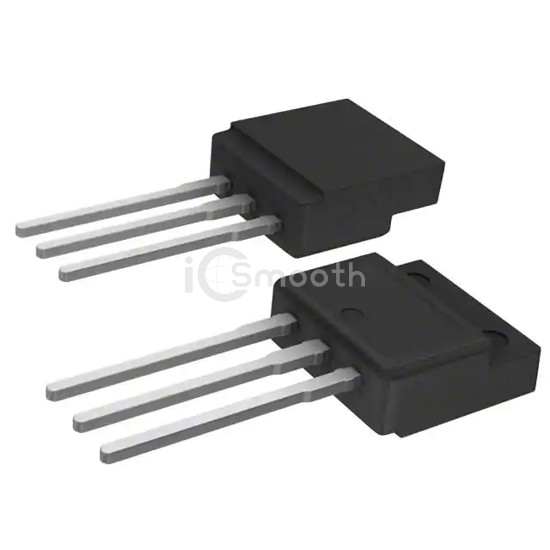

STFI11N65M2

MOSFET N-CH 650V 7A I2PAKFP

STFI11N65M2 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 7A I2PAKFP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-262-3 Full Pack, I²Pak.

Datasheet Request a Quote

In Stock: 6,232

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	670mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12.5 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	410 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	25W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAKFP (TO-281)
Package / Case	TO-262-3 Full Pack, I²Pak
