Name: STE70NM50
Brand: STMicroelectronics
SKU: STE70NM50
Availability: InStock

REF: STE70NM50 STMicroelectronics

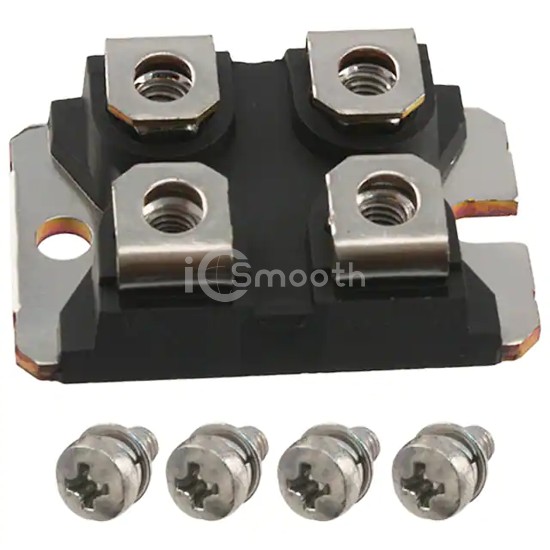

STE70NM50

MOSFET N-CH 500V 70A ISOTOP

STE70NM50 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 500V 70A ISOTOP. Key specifications: mounting type Chassis Mount, operating temperature 150°C (TJ), package / case ISOTOP.

Datasheet Request a Quote

In Stock: 8,405

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	50mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	266 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	7500 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	600W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	ISOTOP®
Package / Case	ISOTOP
