Name: STE45NK80ZD
Brand: STMicroelectronics
SKU: STE45NK80ZD
Availability: InStock

REF: STE45NK80ZD STMicroelectronics

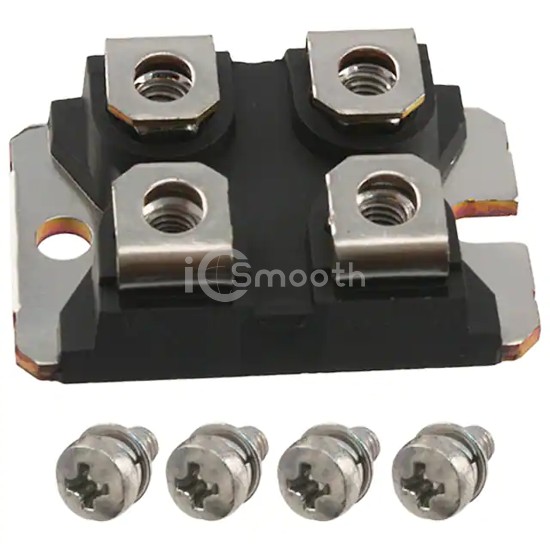

STE45NK80ZD

MOSFET N-CH 800V 45A ISOTOP

STE45NK80ZD is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 800V 45A ISOTOP. Key specifications: mounting type Chassis Mount, operating temperature -65°C ~ 150°C (TJ), package / case ISOTOP.

Datasheet Request a Quote

In Stock: 4,313

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	130mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	781 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	26000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	600W (Tc)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	ISOTOP®
Package / Case	ISOTOP
