Name: STE110NS20FD
Brand: STMicroelectronics
SKU: STE110NS20FD
Availability: InStock

REF: STE110NS20FD STMicroelectronics

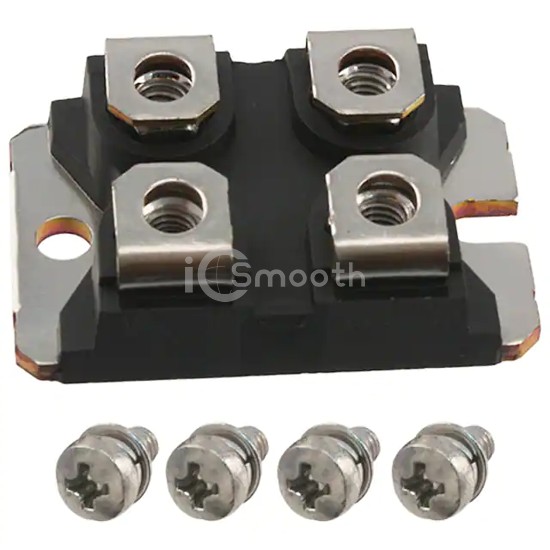

STE110NS20FD

MOSFET N-CH 200V 110A ISOTOP

STE110NS20FD is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 200V 110A ISOTOP. Key specifications: mounting type Chassis Mount, operating temperature 150°C (TJ), package / case ISOTOP.

Datasheet Request a Quote

In Stock: 9,491

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	110A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	24mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	504 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7900 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	500W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	ISOTOP®
Package / Case	ISOTOP
