Name: STD40P8F6AG
Brand: STMicroelectronics
SKU: STD40P8F6AG
Price: 2.06 USD
Availability: InStock

REF: STD40P8F6AG STMicroelectronics

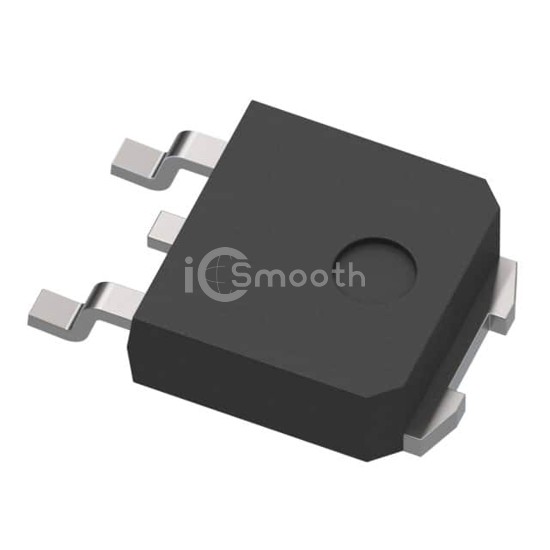

STD40P8F6AG

MOSFET P-CH 80V DPAK

STD40P8F6AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET P-CH 80V DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 6,848

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	28mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	73 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4112 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	100W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-PAK (TO-252)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
