Name: STD19NF20
Brand: STMicroelectronics
SKU: STD19NF20
Availability: InStock

REF: STD19NF20 STMicroelectronics

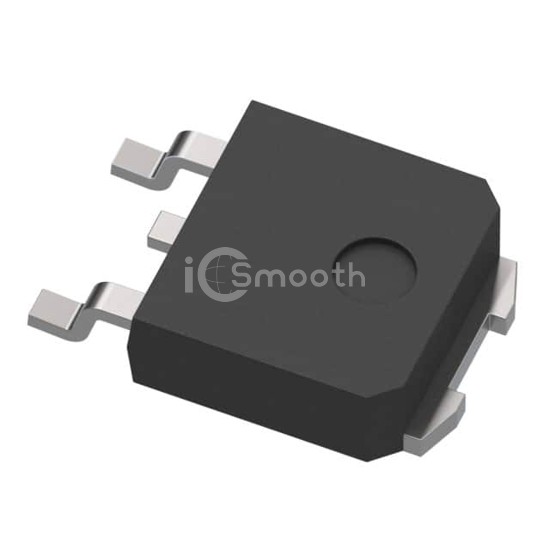

STD19NF20

MOSFET N-CHANNEL 200V 15A DPAK

STD19NF20 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CHANNEL 200V 15A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 5,255

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	160mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	800 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	90W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-PAK (TO-252)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
