Name: STD15N50M2AG
Brand: STMicroelectronics
SKU: STD15N50M2AG
Price: 2.00 USD
Availability: InStock

REF: STD15N50M2AG STMicroelectronics

STD15N50M2AG

STMicroelectronics

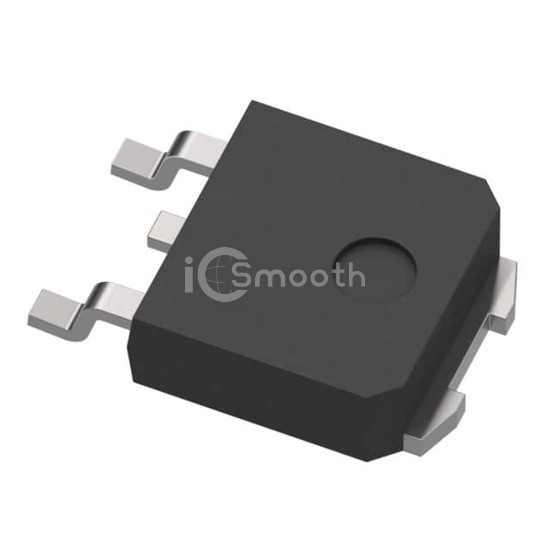

MOSFET N-CHANNEL 500V 10A DPAK

STD15N50M2AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CHANNEL 500V 10A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 5,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	380mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	530 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	85W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-PAK (TO-252)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
