Name: STD12NF06L-1
Brand: STMicroelectronics
SKU: STD12NF06L-1
Price: 1.12 USD
Availability: InStock

REF: STD12NF06L-1 STMicroelectronics

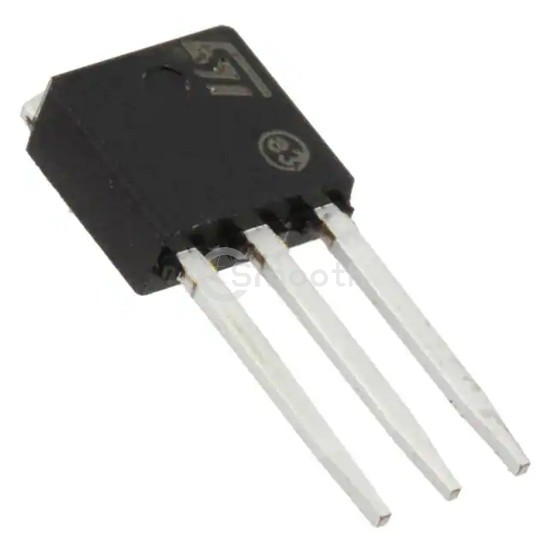

STD12NF06L-1

STMicroelectronics

MOSFET N-CH 60V 12A IPAK

STD12NF06L-1 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 60V 12A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 3,714

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	100mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	350 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	42.8W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
