Name: STD10N60M6
Brand: STMicroelectronics
SKU: STD10N60M6
Price: 1.11 USD
Availability: InStock

REF: STD10N60M6 STMicroelectronics

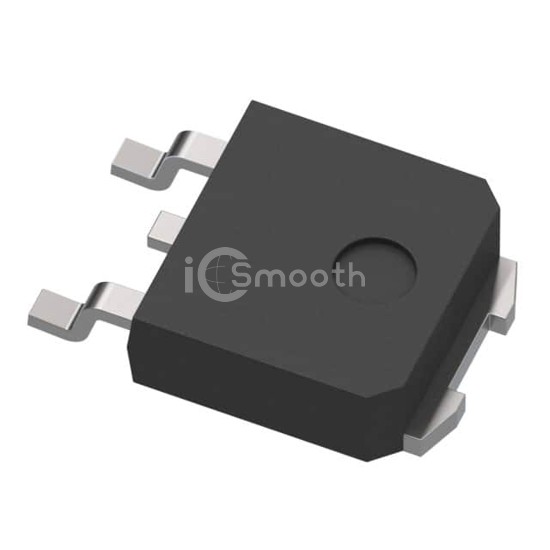

STD10N60M6

MOSFET N-CH 600V 6.4A DPAK

STD10N60M6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 6.4A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 6,872

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	6.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 3.2A, 10V
Vgs(th) (Max) @ Id	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.8 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	338 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	60W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-PAK (TO-252)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
