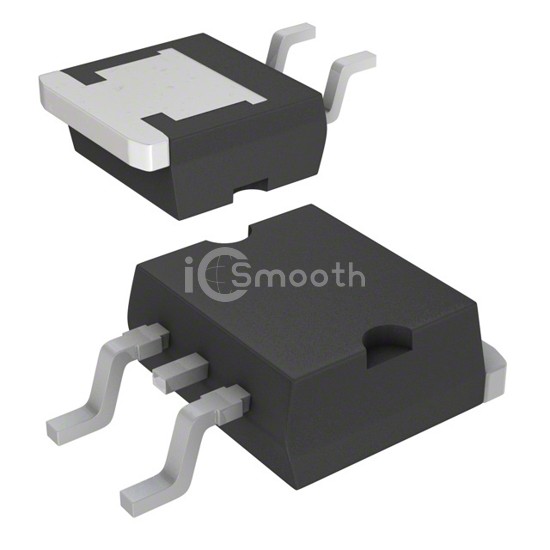

Name: STB45NF06T4
Brand: STMicroelectronics
SKU: STB45NF06T4
Price: 1.83 USD
Availability: InStock

REF: STB45NF06T4 STMicroelectronics

STB45NF06T4

MOSFET N-CH 60V 38A D2PAK

STB45NF06T4 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 60V 38A D2PAK. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA.

Datasheet Request a Quote

In Stock: 7,292

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	28mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	58 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1730 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	80W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
