Name: STB41N40DM6AG
Brand: STMicroelectronics
SKU: STB41N40DM6AG
Price: 4.44 USD
Availability: InStock

REF: STB41N40DM6AG STMicroelectronics

STB41N40DM6AG

STMicroelectronics

AUTOMOTIVE-GRADE N-CHANNEL 400 V

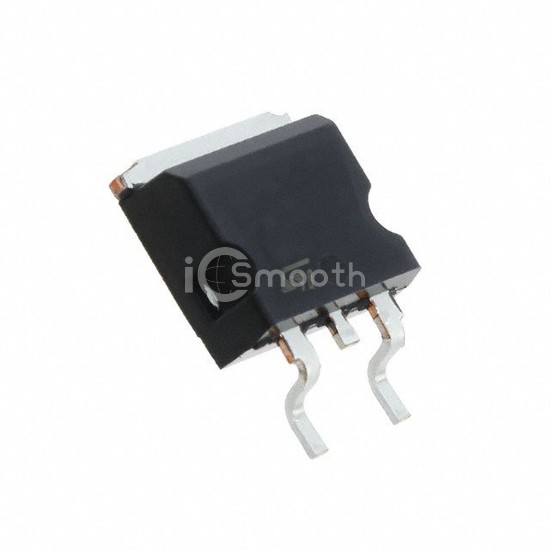

STB41N40DM6AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. AUTOMOTIVE-GRADE N-CHANNEL 400 V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 2,977

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	400 V
Current - Continuous Drain (Id) @ 25°C	41A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	65mOhm @ 20.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	53 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	2310 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	250W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK (TO-263)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
