Name: STB33N65M2
Brand: STMicroelectronics
SKU: STB33N65M2
Price: 4.46 USD
Availability: InStock

REF: STB33N65M2 STMicroelectronics

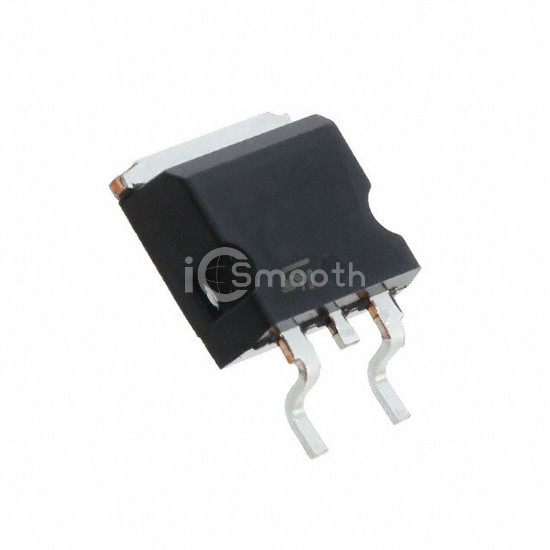

STB33N65M2

MOSFET N-CH 650V 24A D2PAK

STB33N65M2 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 24A D2PAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 4,777

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	140mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	41.5 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1790 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	190W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK (TO-263)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
