Name: STB140N4F6
Brand: STMicroelectronics
SKU: STB140N4F6
Availability: InStock

REF: STB140N4F6 STMicroelectronics

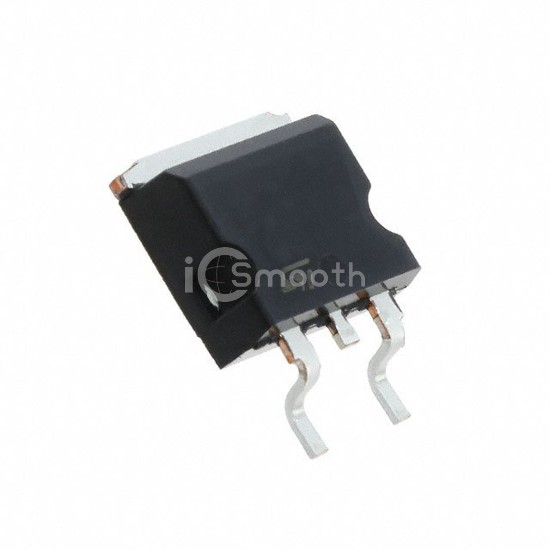

STB140N4F6

MOSFET N-CH 40V 80A D2PAK

STB140N4F6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 40V 80A D2PAK. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Request a Quote

In Stock: 7,854

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	168W (Tc)
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	D²PAK (TO-263)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
