Name: ST3DV520QTR
Brand: STMicroelectronics
SKU: ST3DV520QTR
Price: 1.09 USD
Availability: InStock

REF: ST3DV520QTR STMicroelectronics

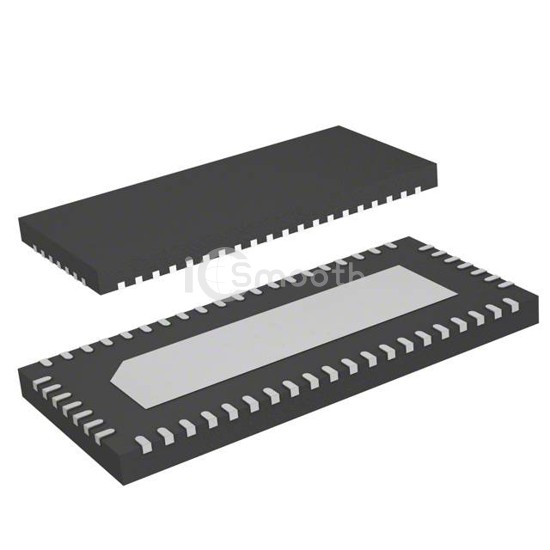

ST3DV520QTR

IC MUX/DEMUX QUAD 2X1 56QFN

ST3DV520QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC MUX/DEMUX QUAD 2X1 56QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 56-WFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 1,688

Tiered Pricing USD

2,500+ $1.0911 —

5,000+ $1.0681 -2%

7,500+ $1.0566 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	7.5Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	3V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	9ns, 8.5ns

-3db Bandwidth	450MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	6pF
Current - Leakage (IS(off)) (Max)	5µA
Crosstalk	-45dB @ 250MHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	56-WFQFN Exposed Pad
Supplier Device Package	56-QFN (11x5)
