SD1405

In Stock: 4,275

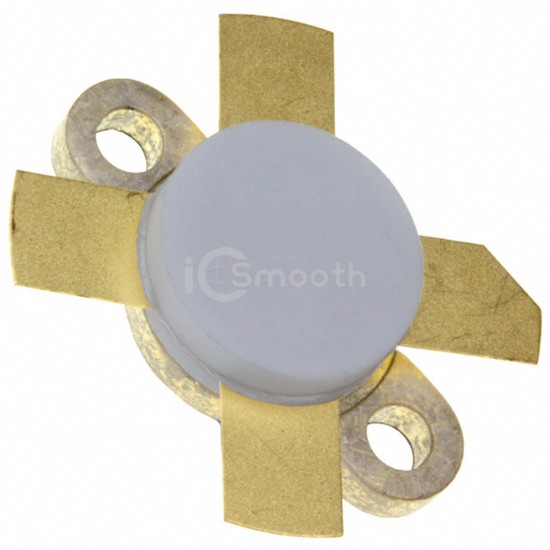

SD1405 - STMicroelectronics - Transistors - Bipolar (BJT) - RF
REF: SD1405 STMicroelectronics
SD1405

STMicroelectronics

RF TRANS NPN 18V M174

SD1405 is a Transistors - Bipolar (BJT) - RF manufactured by STMicroelectronics. RF TRANS NPN 18V M174. Key specifications: mounting type Surface Mount, operating temperature 200°C (TJ), package / case M174, current - collector (ic) (max) 20A.

Datasheet Request a Quote

In Stock: 4,275

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)18V
Frequency - Transition-
Noise Figure (dB Typ @ f)-
Gain13dB
Power - Max270W
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 5A, 5V
Current - Collector (Ic) (Max)20A
Operating Temperature200°C (TJ)
Mounting TypeSurface Mount
Package / CaseM174
Supplier Device PackageM174
