SD1275-01

In Stock: 7,937

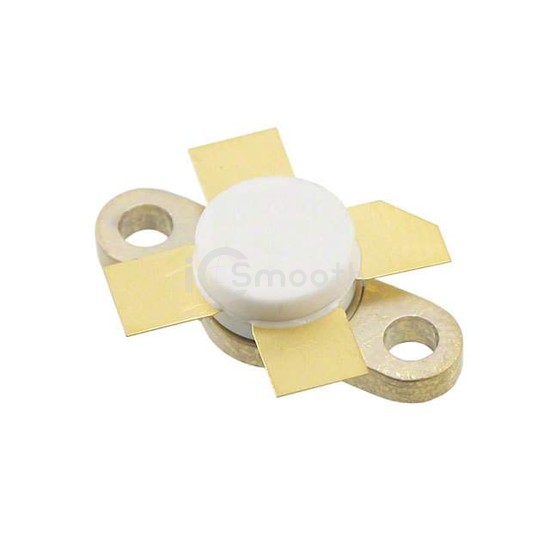

SD1275-01 - STMicroelectronics - Transistors - Bipolar (BJT) - RF
REF: SD1275-01 STMicroelectronics
SD1275-01

STMicroelectronics

RF TRANS NPN 16V M113

SD1275-01 is a Transistors - Bipolar (BJT) - RF manufactured by STMicroelectronics. RF TRANS NPN 16V M113. Key specifications: mounting type Surface Mount, package / case M113, current - collector (ic) (max) 8A, power - max 70W.

Datasheet Request a Quote

In Stock: 7,937

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)16V
Frequency - Transition-
Noise Figure (dB Typ @ f)-
Gain9dB
Power - Max70W
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 250mA, 5V
Current - Collector (Ic) (Max)8A
Operating Temperature-
Mounting TypeSurface Mount
Package / CaseM113
Supplier Device PackageM113
