SD1275

In Stock: 3,427

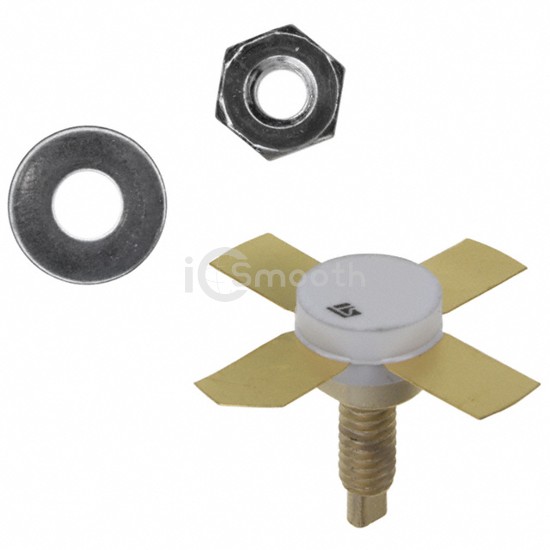

SD1275 - STMicroelectronics - Transistors - Bipolar (BJT) - RF
REF: SD1275 STMicroelectronics
SD1275

STMicroelectronics

RF TRANS NPN 16V M135

SD1275 is a Transistors - Bipolar (BJT) - RF manufactured by STMicroelectronics. RF TRANS NPN 16V M135. Key specifications: mounting type Chassis, Stud Mount, operating temperature 200°C (TJ), package / case M135, current - collector (ic) (max) 8A.

Datasheet Request a Quote

In Stock: 3,427

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)16V
Frequency - Transition-
Noise Figure (dB Typ @ f)-
Gain9dB
Power - Max70W
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 250mA, 5V
Current - Collector (Ic) (Max)8A
Operating Temperature200°C (TJ)
Mounting TypeChassis, Stud Mount
Package / CaseM135
Supplier Device PackageM135
