Name: SCTH90N65G2V-7
Brand: STMicroelectronics
SKU: SCTH90N65G2V-7
Price: 36.73 USD
Availability: InStock

REF: SCTH90N65G2V-7 STMicroelectronics

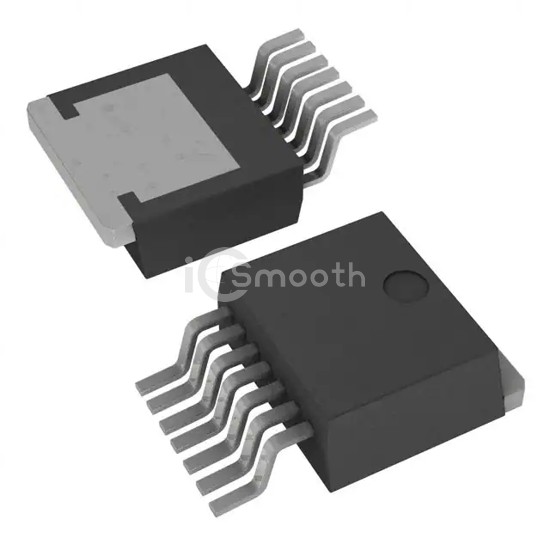

SCTH90N65G2V-7

STMicroelectronics

SICFET N-CH 650V 90A H2PAK-7

SCTH90N65G2V-7 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. SICFET N-CH 650V 90A H2PAK-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 4,636

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	18V
Rds On (Max) @ Id, Vgs	26mOhm @ 50A, 18V
Vgs(th) (Max) @ Id	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	157 nC @ 18 V

Vgs (Max)	+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds	3300 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	330W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2PAK-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
