Name: SCT20N120H
Brand: STMicroelectronics
SKU: SCT20N120H
Price: 16.43 USD
Availability: InStock

REF: SCT20N120H STMicroelectronics

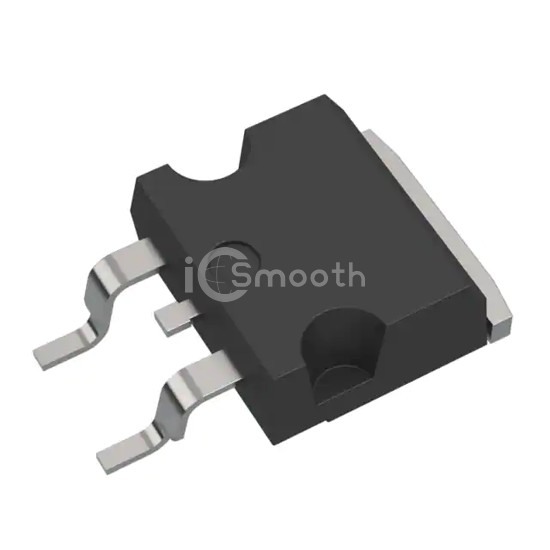

SCT20N120H

SICFET N-CH 1200V 20A H2PAK-2

SCT20N120H is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. SICFET N-CH 1200V 20A H2PAK-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 200°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 6,227

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	290mOhm @ 10A, 20V
Vgs(th) (Max) @ Id	3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	45 nC @ 20 V

Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	650 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	175W (Tc)
Operating Temperature	-55°C ~ 200°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2Pak-2
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
