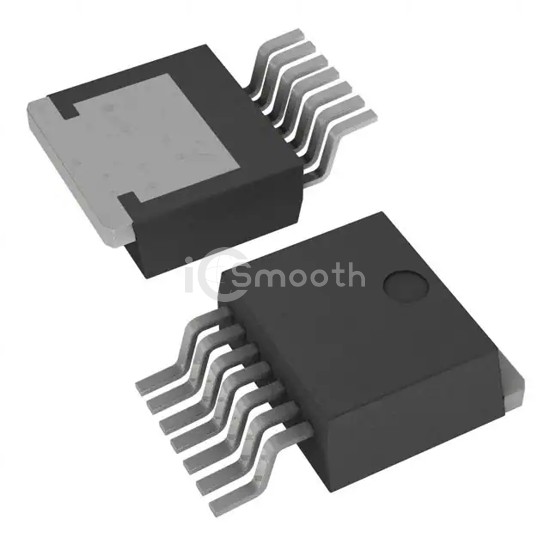

Name: SCT040H65G3AG
Brand: STMicroelectronics
SKU: SCT040H65G3AG
Price: 16.17 USD
Availability: InStock

REF: SCT040H65G3AG STMicroelectronics

SCT040H65G3AG

STMicroelectronics

AUTOMOTIVE-GRADE SILICON CARBIDE

SCT040H65G3AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. AUTOMOTIVE-GRADE SILICON CARBIDE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 150

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V, 18V
Rds On (Max) @ Id, Vgs	55mOhm @ 20A, 18V
Vgs(th) (Max) @ Id	4.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	39.5 nC @ 18 V

Vgs (Max)	+18V, -5V
Input Capacitance (Ciss) (Max) @ Vds	920 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	221W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2PAK-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
