Name: L9733XPTR
Brand: STMicroelectronics
SKU: L9733XPTR
Price: 5.00 USD
Availability: InStock

REF: L9733XPTR STMicroelectronics

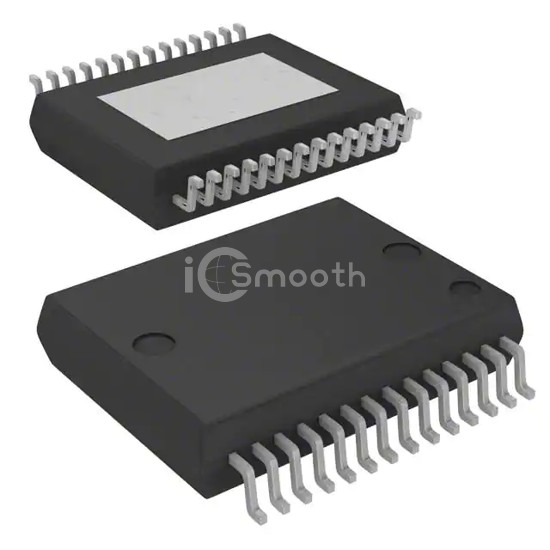

L9733XPTR

IC PWR DRVR N-CHAN 1:8 PWRSSO28

L9733XPTR is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRVR N-CHAN 1:8 PWRSSO28. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 28-SSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 9,522

Tiered Pricing USD

1+ $5.0000 —

10+ $3.8100 -24%

25+ $3.5120 -30%

100+ $3.1848 -36%

250+ $3.0288 -39%

500+ $2.9347 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	8
Ratio - Input:Output	1:8
Output Configuration	High Side or Low Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	4.5V ~ 18V
Voltage - Supply (Vcc/Vdd)	4.5V ~ 5.5V

Current - Output (Max)	1A
Rds On (Typ)	700mOhm (Max)
Input Type	Non-Inverting
Features	PWM Input
Fault Protection	Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	PowerSSO-28 Exposed Pad
Package / Case	28-SSOP (0.295", 7.50mm Width) Exposed Pad
