Name: L9347PD
Brand: STMicroelectronics
SKU: L9347PD
Price: 3.99 USD
Availability: InStock

REF: L9347PD STMicroelectronics

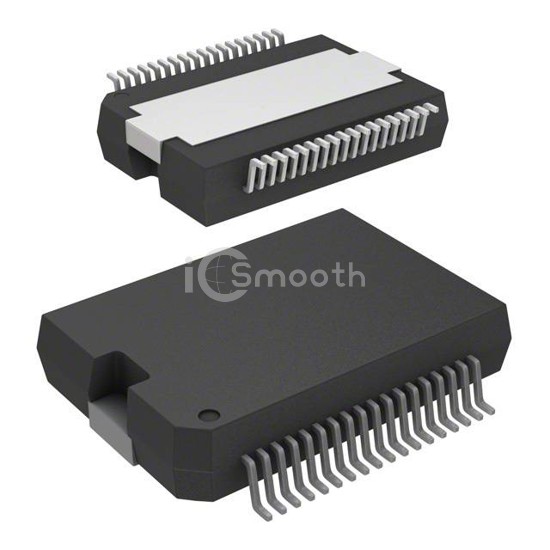

L9347PD

IC PWR DRIVER N-CHAN 1:1 PWRSO36

L9347PD is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHAN 1:1 PWRSO36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 6,306

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.8V ~ 18V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2.5A, 5A
Rds On (Typ)	200mOhm, 350mOhm
Input Type	Non-Inverting
Features	Status Flag
Fault Protection	Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerSO-36
Package / Case	36-BSSOP (0.433", 11.00mm Width) Exposed Pad
