Name: L9301-TR
Brand: STMicroelectronics
SKU: L9301-TR
Price: 6.68 USD
Availability: InStock

REF: L9301-TR STMicroelectronics

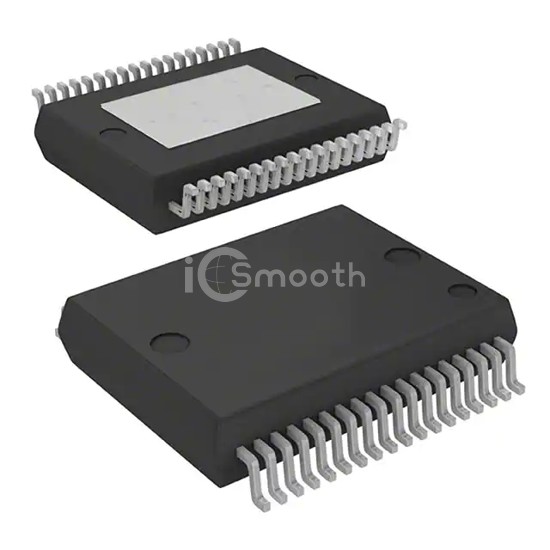

L9301-TR

IC PWR DRIVER N-CHANNEL PWRSSO36

L9301-TR is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHANNEL PWRSSO36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 36-PowerFSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 4,213

Tiered Pricing USD

1+ $6.6800 —

10+ $6.2180 -7%

25+ $6.0304 -10%

50+ $5.8884 -12%

100+ $5.7470 -14%

250+ $5.5614 -17%

500+ $5.4228 -19% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	12
Ratio - Input:Output	-
Output Configuration	High Side or Low Side
Output Type	N-Channel
Interface	SPI, Parallel
Voltage - Load	5V ~ 18V
Voltage - Supply (Vcc/Vdd)	4.75V ~ 5.25V

Current - Output (Max)	-
Rds On (Typ)	-
Input Type	-
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	PowerSSO-36 EPD
Package / Case	36-PowerFSOP (0.295", 7.50mm Width)
