Name: L294
Brand: STMicroelectronics
SKU: L294
Availability: InStock

REF: L294 STMicroelectronics

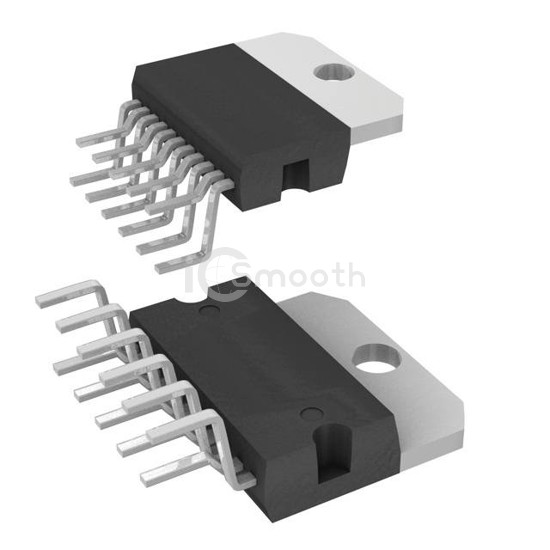

L294

IC PWR DRVR BIPLR 1:2 11MULTWATT

L294 is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRVR BIPLR 1:2 11MULTWATT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 7V, package / case Multiwatt-11 (Vertical, Bent and Staggered Leads).

Datasheet Request a Quote

In Stock: 7,033

Specifications

18 parameters

Product Status	Obsolete
Switch Type	Relay, Solenoid Driver
Number of Outputs	2
Ratio - Input:Output	1:2
Output Configuration	High Side
Output Type	Bipolar
Interface	On/Off
Voltage - Load	12V ~ 46V
Voltage - Supply (Vcc/Vdd)	4.5V ~ 7V

Current - Output (Max)	-
Rds On (Typ)	-
Input Type	Non-Inverting
Features	-
Fault Protection	Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	Multiwatt-11 (Vertical, Bent and Staggered Leads)
Package / Case	Multiwatt-11 (Vertical, Bent and Staggered Leads)
