DB157S

In Stock: 5,674

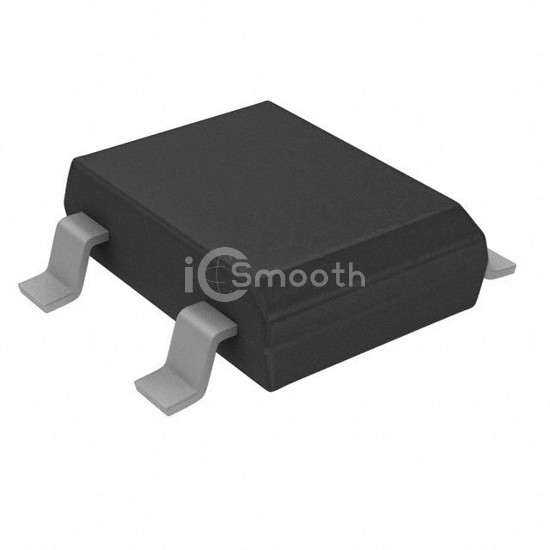

DB157S - SMC Diode Solutions - Diodes - Bridge Rectifiers
REF: DB157S SMC Diode Solutions
DB157S

SMC Diode Solutions

BRIDGE RECT 1PHASE 1KV 1.5A DB-S

DB157S is a Diodes - Bridge Rectifiers manufactured by SMC Diode Solutions. BRIDGE RECT 1PHASE 1KV 1.5A DB-S. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,674

Tiered Pricing USD
1+ $0.5200 —
10+ $0.3190 -39%
100+ $0.2029 -61%
500+ $0.1524 -71% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)1 kV
Current - Average Rectified (Io)1.5 A
Voltage - Forward (Vf) (Max) @ If1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr5 µA @ 1000 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device PackageDB-S
