DB105S

In Stock: 30,849

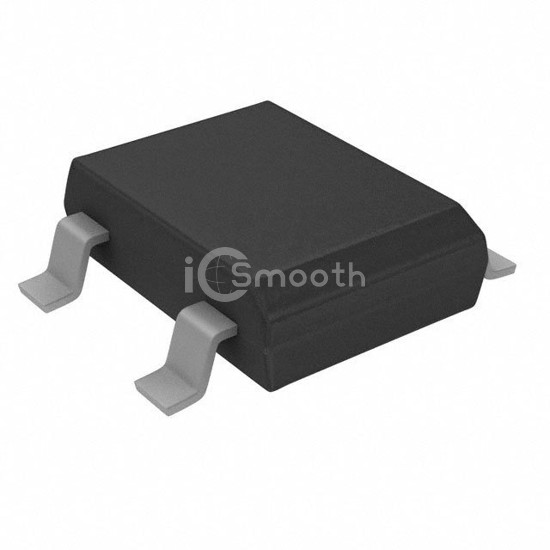

DB105S - SMC Diode Solutions - Diodes - Bridge Rectifiers
REF: DB105S SMC Diode Solutions
DB105S

SMC Diode Solutions

BRIDGE RECT 1PHASE 600V 1A DB-S

DB105S is a Diodes - Bridge Rectifiers manufactured by SMC Diode Solutions. BRIDGE RECT 1PHASE 600V 1A DB-S. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 30,849

Tiered Pricing USD
1+ $0.4400 —
10+ $0.2670 -39%
100+ $0.1688 -62%
500+ $0.1260 -71% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)600 V
Current - Average Rectified (Io)1 A
Voltage - Forward (Vf) (Max) @ If1.1 V @ 1 A
Current - Reverse Leakage @ Vr5 µA @ 600 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device PackageDB-S
