BSP315

In Stock: 5,776

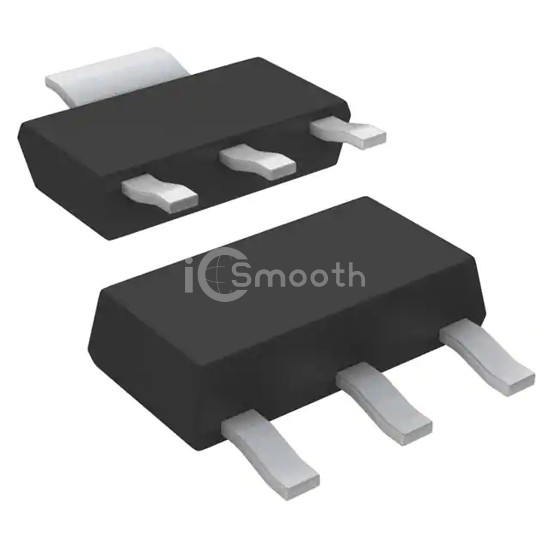

BSP315 - Siemens - Transistors - FETs, MOSFETs - Single
REF: BSP315 Siemens
BSP315

Siemens

MOSFET P-CH 50V 1A SOT223

BSP315 is a Transistors - FETs, MOSFETs - Single manufactured by Siemens. MOSFET P-CH 50V 1A SOT223. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 5,776

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C1A
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs0.8Ohms
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)1.8W
Operating Temperature150°C
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
