PC900V0NIZX

In Stock: 1,978

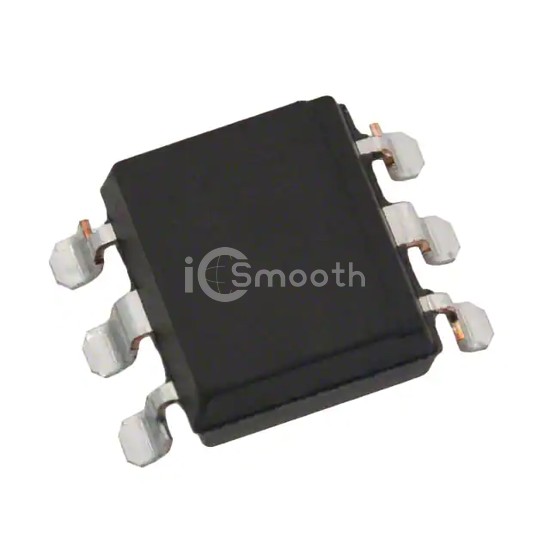

PC900V0NIZX - Sharp Microelectronics - Optoisolators - Logic Output
REF: PC900V0NIZX Sharp Microelectronics
PC900V0NIZX

Sharp Microelectronics

OPTOISO 5KV OPEN COLLECTOR 6SMD

PC900V0NIZX is a Optoisolators - Logic Output manufactured by Sharp Microelectronics. OPTOISO 5KV OPEN COLLECTOR 6SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage - supply 3V ~ 15V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,978

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel50 mA
Data Rate-
Propagation Delay tpLH / tpHL (Max)6µs, 3µs
Rise / Fall Time (Typ)100ns, 50ns
Voltage - Forward (Vf) (Typ)1.1V
Current - DC Forward (If) (Max)50mA
Voltage - Supply3V ~ 15V
Operating Temperature-25°C ~ 85°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
