5HN01M-TL-E-SA

In Stock: 246,000

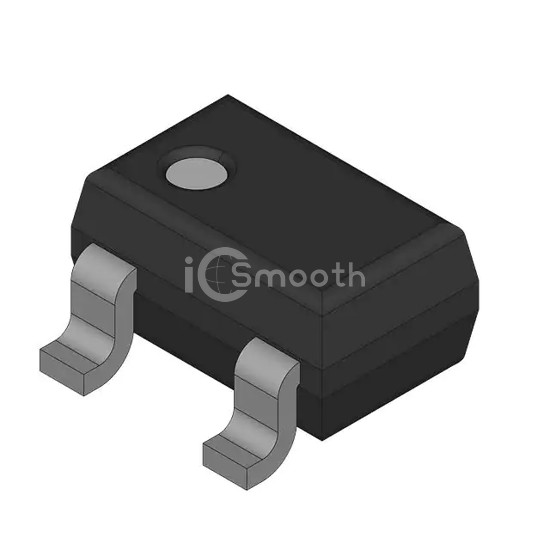

5HN01M-TL-E-SA - Sanyo - Transistors - FETs, MOSFETs - Single
REF: 5HN01M-TL-E-SA Sanyo
5HN01M-TL-E-SA

Sanyo

MOSFET N-CH 50V 100MA MCP

5HN01M-TL-E-SA is a Transistors - FETs, MOSFETs - Single manufactured by Sanyo. MOSFET N-CH 50V 100MA MCP. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 246,000

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs7.5Ohm @ 50mA, 10V
Vgs(th) (Max) @ Id2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs1.4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6200 pF @ 10 V
FET Feature-
Power Dissipation (Max)150mW (Ta)
Operating Temperature150°C
Mounting TypeSurface Mount
Supplier Device PackageMCP
Package / CaseSC-70, SOT-323
