3LP01S-TL-E

In Stock: 5,863

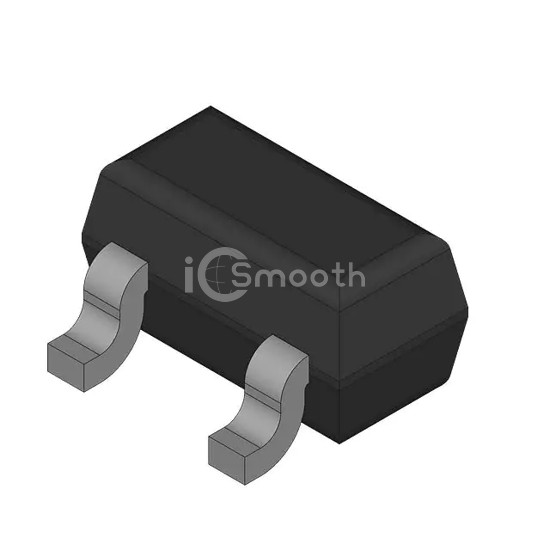

3LP01S-TL-E - Sanyo - Transistors - FETs, MOSFETs - Single
REF: 3LP01S-TL-E Sanyo
3LP01S-TL-E

Sanyo

P-CHANNEL SILICON MOSFET

3LP01S-TL-E is a Transistors - FETs, MOSFETs - Single manufactured by Sanyo. P-CHANNEL SILICON MOSFET. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 5,863

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4V
Rds On (Max) @ Id, Vgs10.4Ohm @ 50mA, 4V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs1.43 nC @ 10 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds7500 pF @ 10 V
FET Feature-
Power Dissipation (Max)150mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSMCP
Package / CaseSC-75, SOT-416
