DF20NA80S

In Stock: 8,944

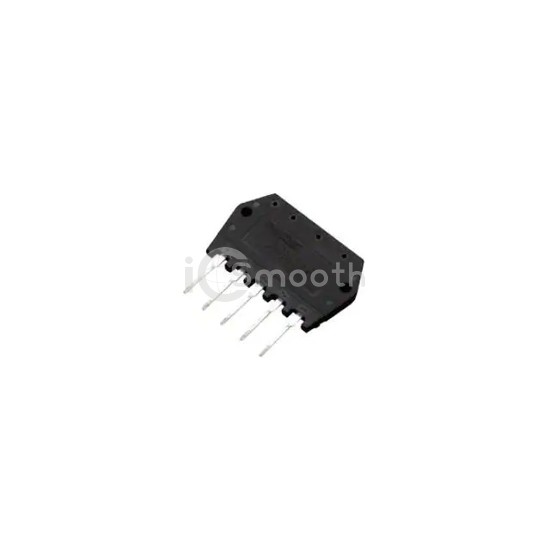

DF20NA80S - SanRex Corporation - Diodes - Bridge Rectifiers
REF: DF20NA80S SanRex Corporation
DF20NA80S

SanRex Corporation

DIODE MODULE 800V 20A

DF20NA80S is a Diodes - Bridge Rectifiers manufactured by SanRex Corporation. DIODE MODULE 800V 20A. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 5-SIP Exposed Pad.

Datasheet Request a Quote

In Stock: 8,944

Specifications

11 parameters
Product StatusActive
Diode TypeThree Phase
TechnologyStandard
Voltage - Peak Reverse (Max)800 V
Current - Average Rectified (Io)20 A
Voltage - Forward (Vf) (Max) @ If1.2 V @ 20 A
Current - Reverse Leakage @ Vr4 mA @ 800 V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case5-SIP Exposed Pad
Supplier Device Package5-SIP
