GKI07301

In Stock: 388

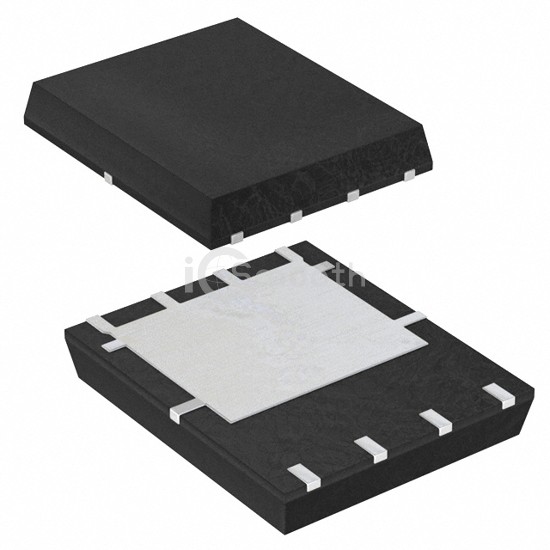

GKI07301 - Sanken - Transistors - FETs, MOSFETs - Single
REF: GKI07301 Sanken
GKI07301

Sanken

MOSFET N-CH 75V 6A 8DFN

GKI07301 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 75V 6A 8DFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 388

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs23.2mOhm @ 12.4A, 10V
Vgs(th) (Max) @ Id2.5V @ 350µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1580 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 46W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6)
Package / Case8-PowerTDFN
