GKI07113

In Stock: 48

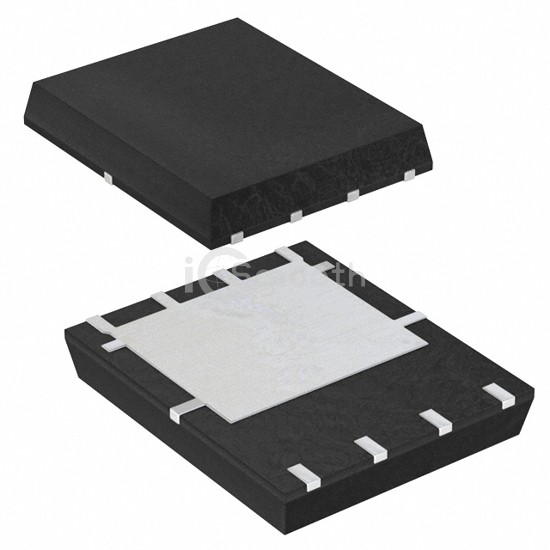

GKI07113 - Sanken - Transistors - FETs, MOSFETs - Single
REF: GKI07113 Sanken
GKI07113

Sanken

MOSFET N-CH 75V 9A 8DFN

GKI07113 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 75V 9A 8DFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 48

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9.1mOhm @ 27.2A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs57 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4040 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 77W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6)
Package / Case8-PowerTDFN
