Name: GKI06259
Brand: Sanken
SKU: GKI06259
Availability: InStock

REF: GKI06259 Sanken

GKI06259

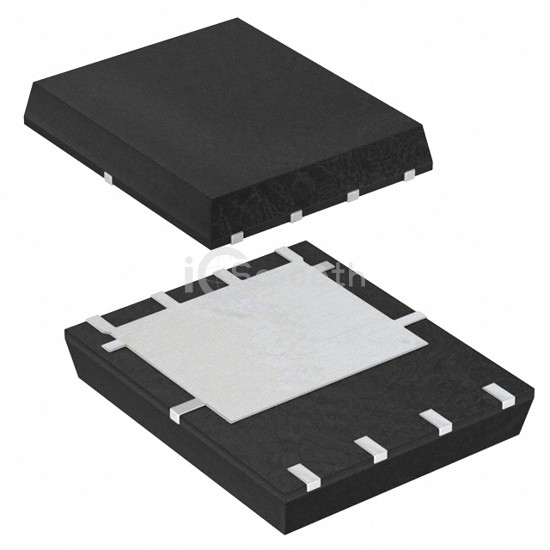

MOSFET N-CH 60V 6A 8DFN

GKI06259 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 60V 6A 8DFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 7,585

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	21mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1050 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 40W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6)
Package / Case	8-PowerTDFN
