Name: GKI06109
Brand: Sanken
SKU: GKI06109
Availability: InStock

REF: GKI06109 Sanken

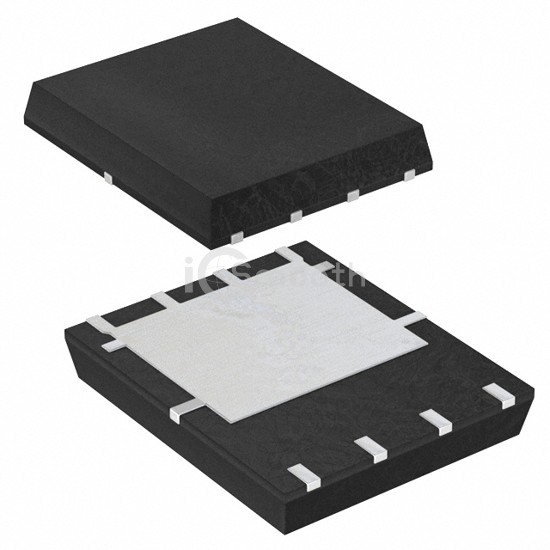

GKI06109

MOSFET N-CH 60V 9A 8DFN

GKI06109 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 60V 9A 8DFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 9,216

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 23.6A, 10V
Vgs(th) (Max) @ Id	2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs	38.6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2520 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 59W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6)
Package / Case	8-PowerTDFN
