EKV550

In Stock: 1,440

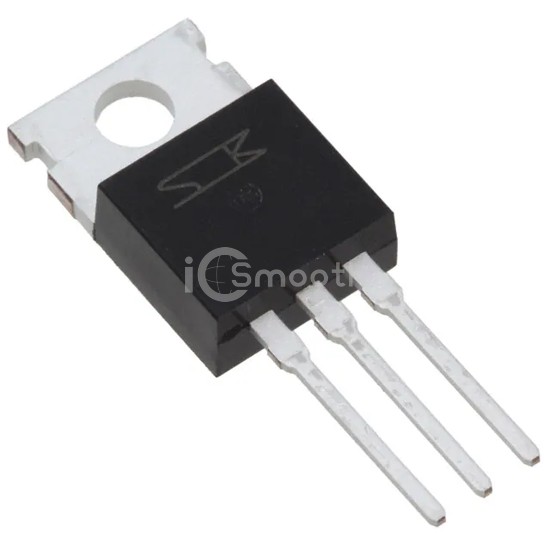

EKV550 - Sanken - Transistors - FETs, MOSFETs - Single
REF: EKV550 Sanken
EKV550

Sanken

MOSFET N-CH 50V 50A TO220

EKV550 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 50V 50A TO220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 1,440

Specifications

17 parameters
Product StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C50A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs15mOhm @ 25A, 10V
Vgs(th) (Max) @ Id4.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2000 pF @ 10 V
FET Feature-
Power Dissipation (Max)85W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220-3
Package / CaseTO-220-3
