Name: EKI10300
Brand: Sanken
SKU: EKI10300
Availability: InStock

REF: EKI10300 Sanken

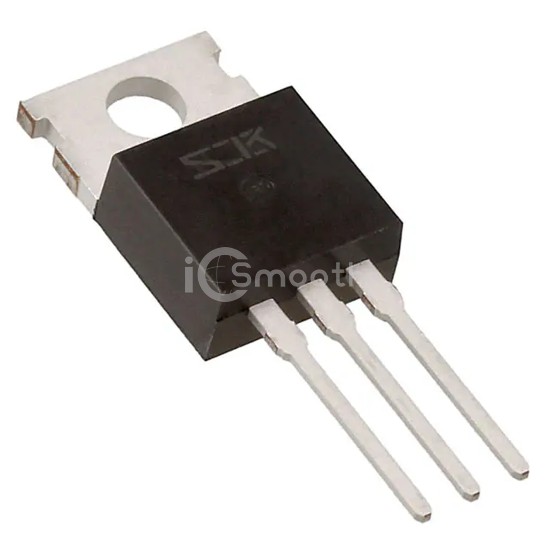

EKI10300

MOSFET N-CH 100V 34A TO220

EKI10300 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 100V 34A TO220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 1,504

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	28.8mOhm @ 17.1A, 10V
Vgs(th) (Max) @ Id	2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs	36.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2540 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	90W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
