EKI07174

In Stock: 5,227

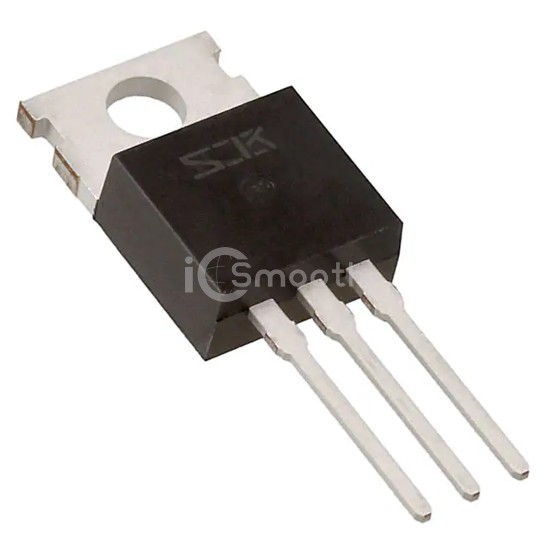

EKI07174 - Sanken - Transistors - FETs, MOSFETs - Single
REF: EKI07174 Sanken
EKI07174

Sanken

MOSFET N-CH 75V 46A TO-220

EKI07174 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 75V 46A TO-220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 5,227

Specifications

17 parameters
Product StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C46A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs13.6mOhm @ 22.8A, 10V
Vgs(th) (Max) @ Id2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs36.2 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2520 pF @ 25 V
FET Feature-
Power Dissipation (Max)90W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220-3
Package / CaseTO-220-3
