Name: EKI07117
Brand: Sanken
SKU: EKI07117
Price: 0.33 USD
Availability: InStock

REF: EKI07117 Sanken

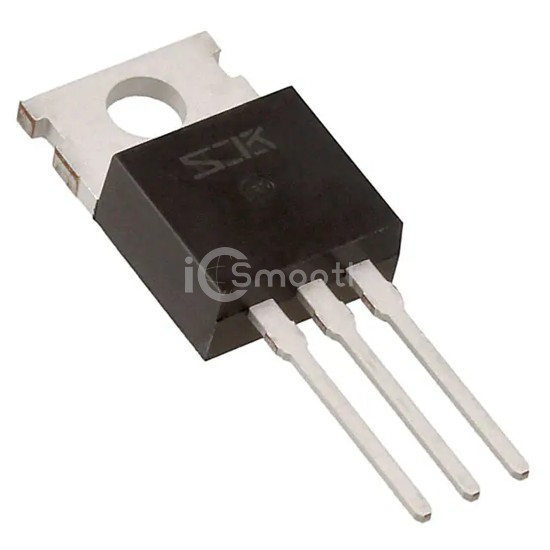

EKI07117

MOSFET N-CH 75V 62A TO220-3

EKI07117 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 75V 62A TO220-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 3,421

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	62A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.3mOhm @ 31.2A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	57 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4040 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	116W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
