Name: EKI06051
Brand: Sanken
SKU: EKI06051
Price: 0.83 USD
Availability: InStock

REF: EKI06051 Sanken

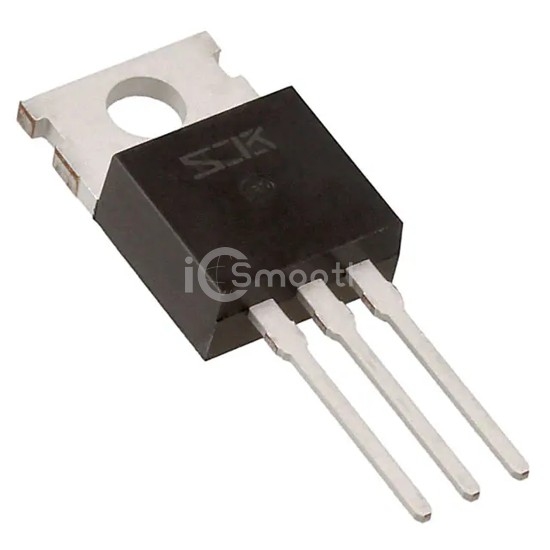

EKI06051

MOSFET N-CH 60V 85A TO220-3

EKI06051 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 60V 85A TO220-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 7,237

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	85A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.7mOhm @ 55A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs	90.6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6210 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	135W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
