Name: EKI04036
Brand: Sanken
SKU: EKI04036
Availability: InStock

REF: EKI04036 Sanken

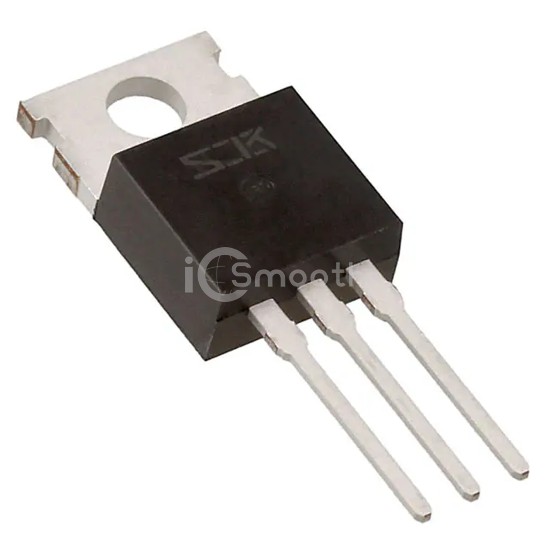

EKI04036

MOSFET N-CH 40V 80A TO220-3

EKI04036 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 40V 80A TO220-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 9,408

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 58.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	63.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3910 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	116W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
