Name: DKI04077
Brand: Sanken
SKU: DKI04077
Availability: InStock

REF: DKI04077 Sanken

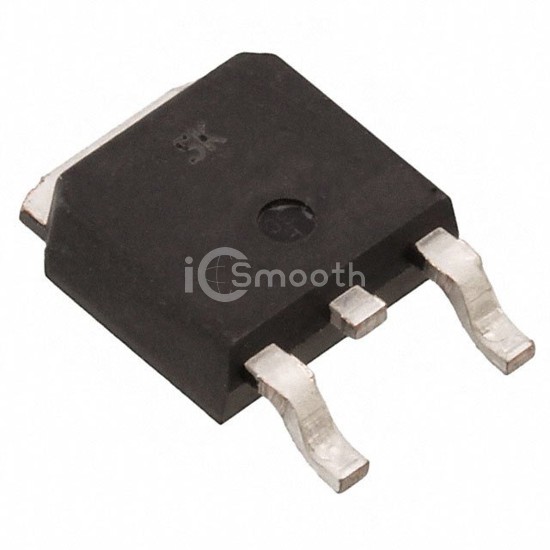

DKI04077

MOSFET N-CH 40V 47A TO252

DKI04077 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 40V 47A TO252. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 5,664

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 23.3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 350µA
Gate Charge (Qg) (Max) @ Vgs	18.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1470 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	37W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
